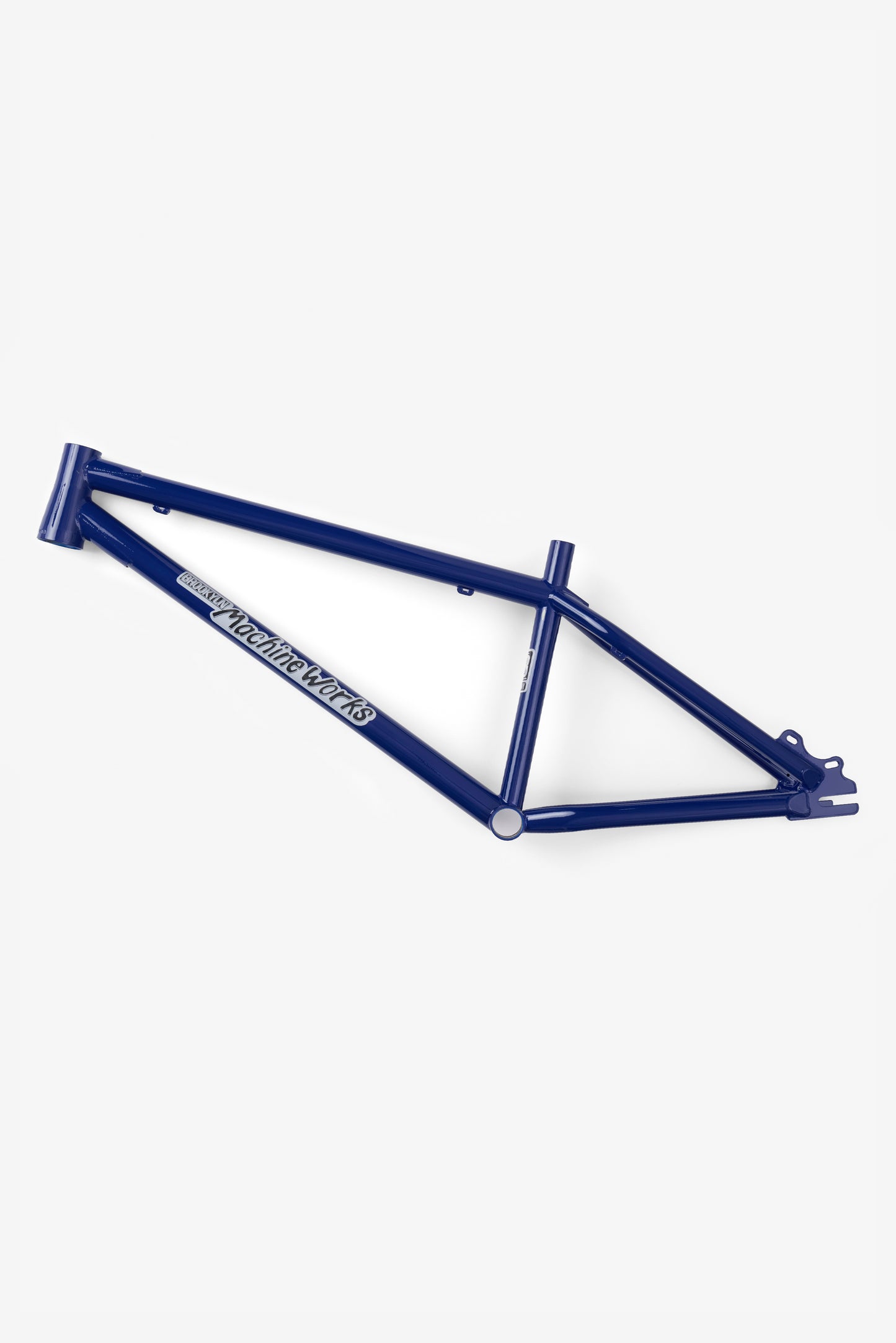

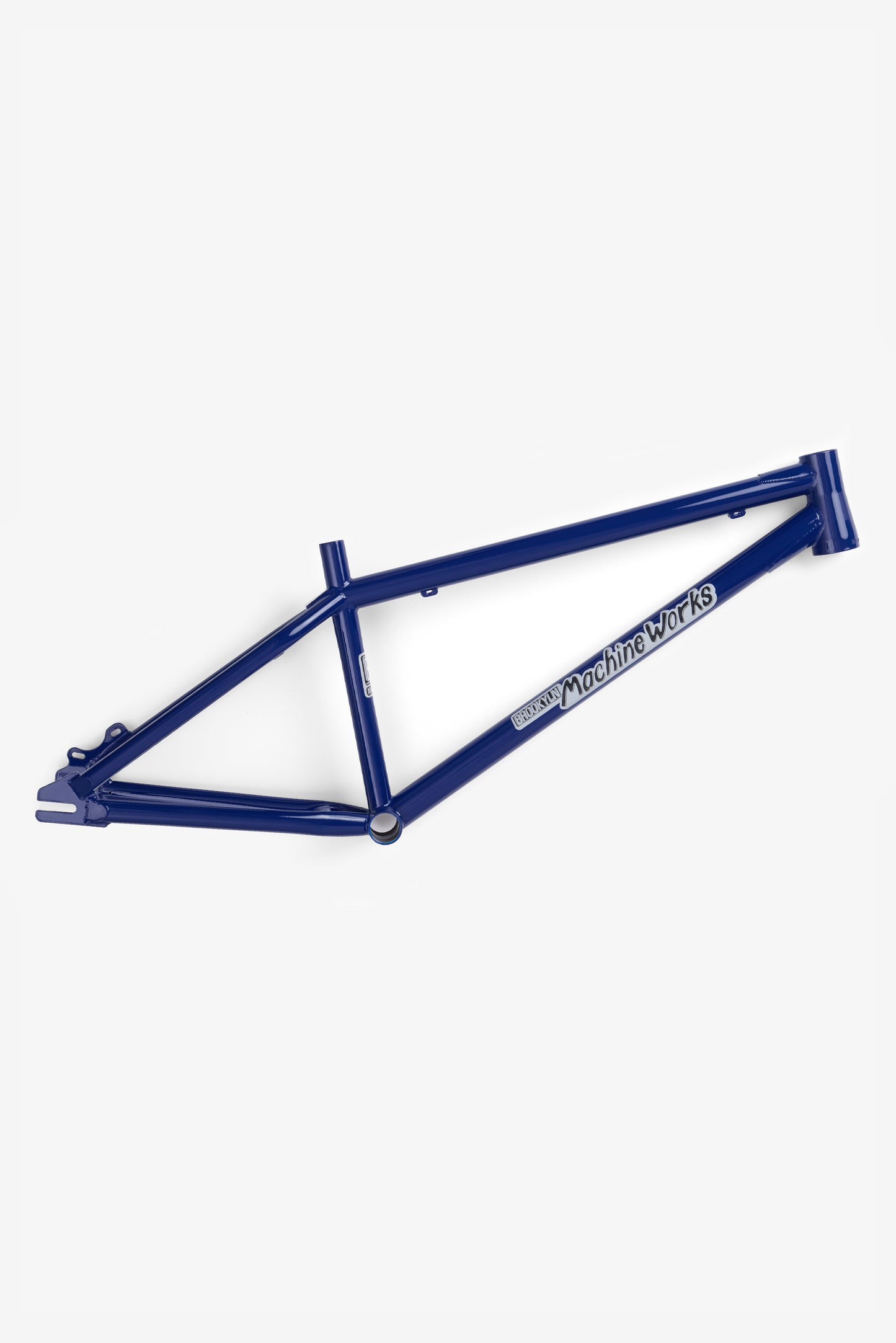

PARK BIKE V4

Color: Blue

Wheel Size: 24"

Top Tube Length: 24.5"

Seat Tube Length : 10.6" (approx. 331 mm)

Chainstay Length : 13.75"

Head Tube Angle : 70°

Seat Tube Angle : 72°

Bottom Bracket (BB)
Height: +0.50" (approx. +12.7 mm)
• Width: 68 mm Euro BB)

Seatpost Diameter : Φ27.2mm

Seat Tube Outer Diameter : Φ29.8 mm

Headset Standard
• Upper: 1-1/8" integrated bearing (42 mm)
• Lower: 1.5" integrated bearing (52 mm)

O.L.D. (Over Locknut Dimension) : 135 mm

Rear Brake Mount : International Standard

Weight : 2.6 kg
